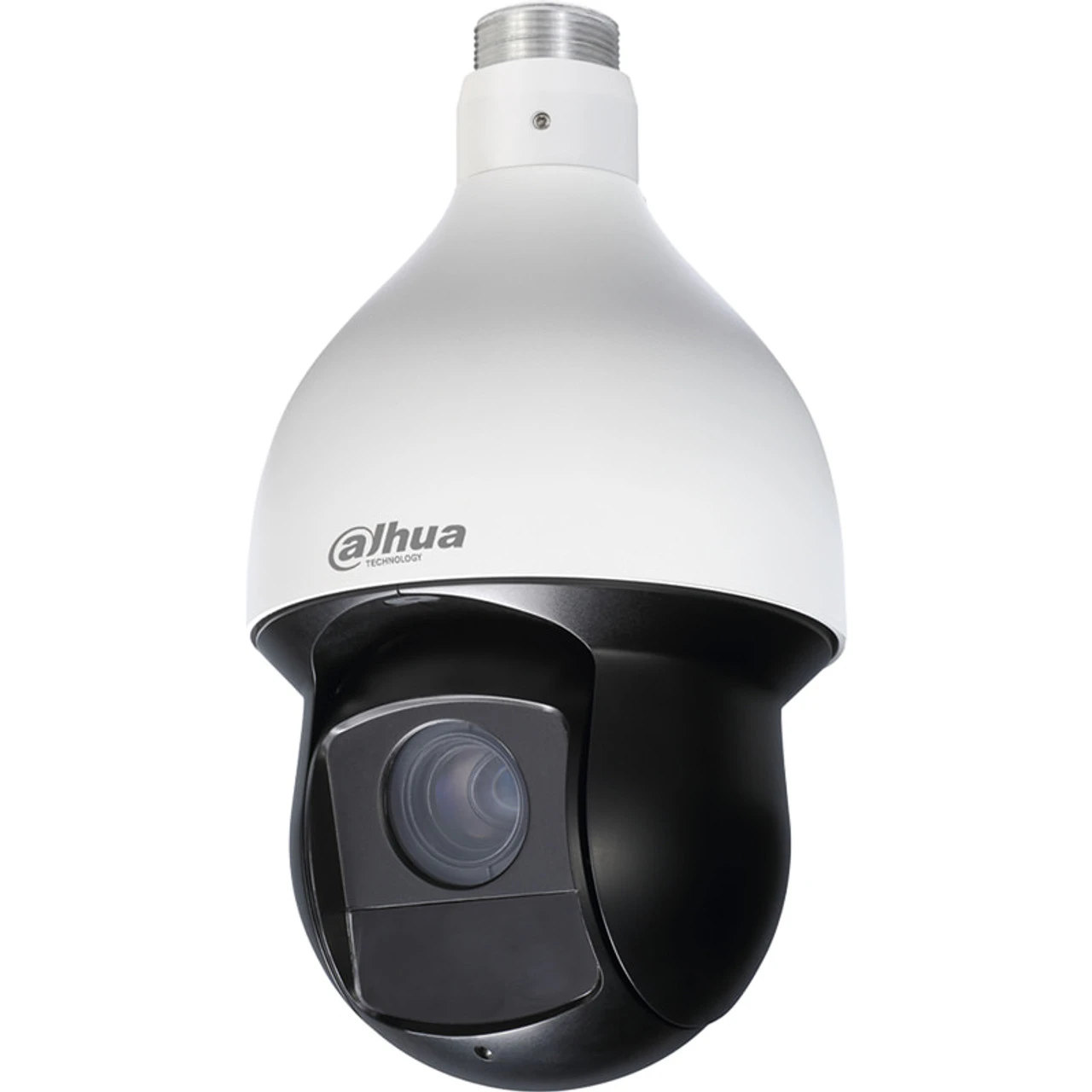

Dahua 59232ICLA 2MP Night Vision Outdoor PTZ HD-CVI Security Camera with 32x Optical Zoom, Starlight, Arctic Pro
The 2 MP Starlight IR PTZ Dome camera features a 1/2.8-in. STARVIS™
CMOS imager with a 32x optical zoom lens, and provides an all in one
solution for capturing long-distance video surveillance for outdoor
applications, day or night. The camera offers a built-in heater and IP66
Ingress Protection to extend its use to the harshest environments. The
PTZ camera is equipped with quick and accurate pan/tilt/zoom control
and True WDR for applications with direct sunlight or glare.
Key Features:
- 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
- Powerful 32x Optical Zoom
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- Starlight Technology for Ultra-low Light Sensitivity
- 1080p at 30 fps or 720p at 30/60 fps, Maximum Resolution
- True Wide Dynamic Range (120 dB), 3D DNR
- Maximum IR Distance up to 150 m (492.13ft)
- Predictive Focus Analysis (PFA) Technology
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP66 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light
Technology offers light sensitivity that captures details in low light down
to 0.005 lux. The camera uses a set of optical features to balance light
throughout the scene, resulting in clear images in dark environments.
Multi-Format Output Support
The camera supports multiple video formats including, HDCVI, CVBS,
AHD, and TVI. The camera can switch between these four formats via the
OSD menu making the camera compatible with not only HDCVI DVRs but
also most existing HD/SD DVRs.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance
systems with upgraded, high-quality HD video, making it the best choice
to protect security investments. The plug and play approach enables full
HD video surveillance without the hassles of configuring a network.
Dual Video Output Signals
The camera offers one (1) BNC video output connection to transmit
either an HDCVI or a CVBS signal. These output signals allow the camera
to integrate with various devices, including analog matrix systems and
monitors.
True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast
lighting conditions, using industry-leading wide dynamic range (WDR)
technology. For applications with both bright and low lighting conditions
that change quickly, True WDR (120 dB) optimizes both the bright and
dark areas of a scene at the same time to provide usable video.
ArcticPro
The Dahua ArcticPro Series of extreme-environment cameras combine
temperature-tolerant components, a waterproof enclosure, and an
integrated heater to ensure flawless operation in temperatures as low as
–40° C (–40° F). For applications that demand high-resolution video with
advanced features in extremely cold environments, the Dahua ArcticPro
Series offers a camera to satisfy the most demanding requirements.
Environmental
With a built-in heater and a temperature range of –40 °C to +60 °C
(–40 °F to +140 °F), the camera is designed for extreme temperature
environments. Subjected to rigorous dust and water immersion tests
and certified to the IP66 Ingress Protection rating makes it suitable for
demanding outdoor applications.
Protection
This camera suits even the harsh conditions for outdoor applications.
Its 6KV lightning rating provides protection against the camera and its
structure from the effects of lightning.
2.75°Field of View
60.14°Field of View
30fps at 1080P
Motorized (Automatic Zoom) Lens
4.5~144mm Lens
CMOS
1/2.8″ Sensor
1x BNC
IP66
Outdoor
F1.6
F4.0
| Alarm Input | 2 Channel |
|---|---|
| Sensor Size | 1/2.8" |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Optical Zoom | 32x Optical Zoom |
| Power Supply | 24 VAC |
| Product Series | Dahua ArcticPro Series Dahua Pro Series |
| Protection Code | IP66 |
| Recognize (ft) | 1305 |
| Resolution | 2MP |
| Sensor Type | CMOS |
| Noise Reduction | 2D DNR 3D DNR |
| Serial Interface | 1x RS485 |
| Shutter Speed | 1/3-1/100000s |
| Special Technologies | Dahua Starlight Technology Dahua Predictive Focus Analysis (PFA) Technology |
| Surge Protection | TVS 6000V |
| Technology | HD CCTV |
| Video Output | 1x BNC |
| Warranty | 5-year Manufacturer Warranty |
| Observe (ft) | 2575 |
| Night Vision Type | Night Vision (IR) |
| Alarm Output | 1 Channel |
| Environmental | Outdoor |
| Aperture | F1.6 F4.0 |
| Audio Input | 1x Channel |
| Camera Style | PTZ |
| Day/Night | Auto ICR (True Day/Night) Day (Color) Night (B/W) |
| Detect (ft) | 6515 |
| Digital Zoom | 16 |
| Durability | Weatherproof |
| Field of View (Horizontal) | 2.75 60.14 |
| Night Vision Range (ft) | 492 |
| HD CCTV Type | HD-CVI |
| Identify (ft) | 649 |
| Languages | English French German |
| Lens Size | 4.5~144mm |
| Lens Type | Motorized (Automatic Zoom) Lens |
| Max Power Consumption | 22 Watts |
| Max. FPS and Resolution | 30fps at 1080P |
| Wide Dynamic Range (WDR) | True WDR 120dB |
