Dahua Automobilinė CVI Kamera 2Mpix Raiška 3200P

Dahua Automobilinė CVI Kamera 2Mpix Raiška 3200P - Image 2

Dahua Automobilinė CVI Kamera 2Mpix Raiška 3200P

Original price was: $73.00.Current price is: $51.10.

SKU: Z3BZB 7657424523 Categories: HD-CVI sistema, HD-CVI vaizdo kameros, Security Cameras Tag: Dahua

Shop with confidence, we guarantee quality.
The Quality Choice for Smart Shoppers
Your happiness, our mission.
Shop with ease, buy with confidence.

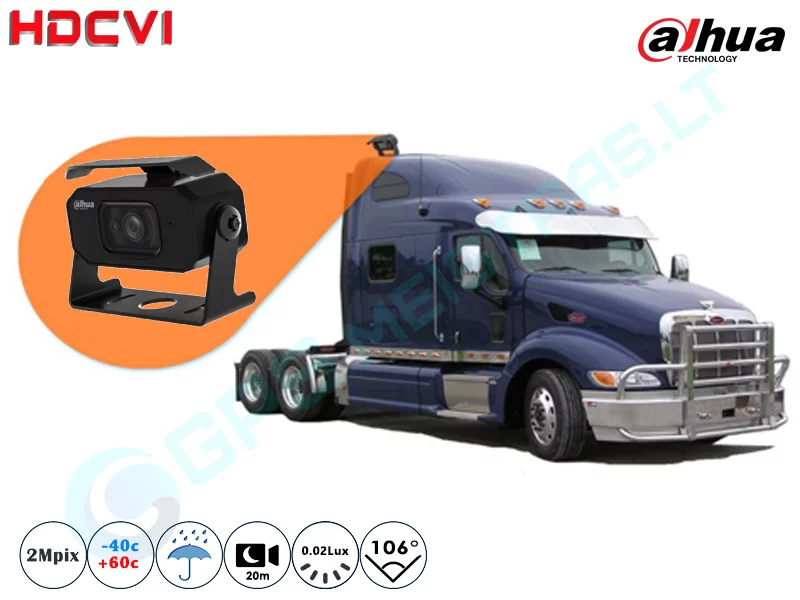

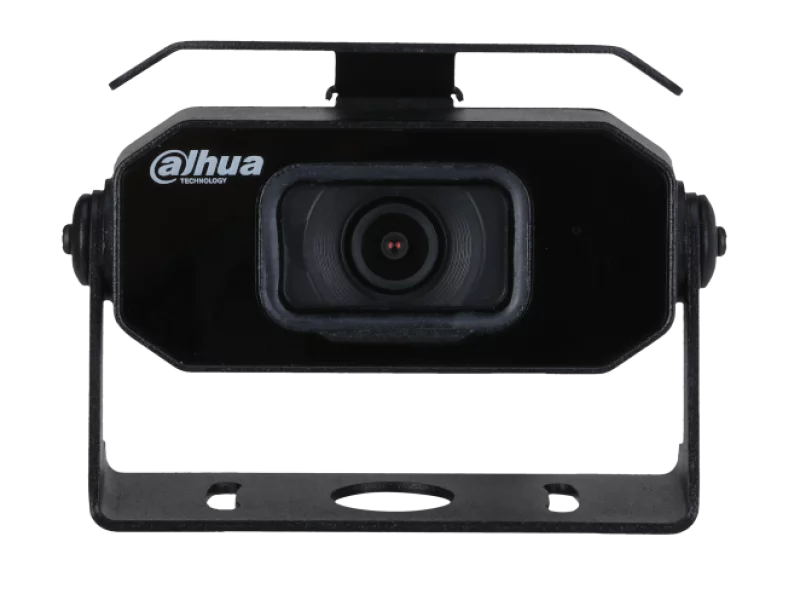

Automobilinė HDCVI vaizdo kamera, 2MP.

Techninės charakteristikos:

Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

1920 (H) x 1080 (V)

Pixel

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

S/N Ratio

>65 dB

Min. Illumination

0.02 Lux/F2.0, 30IRE, 0 Lux IR on

Illumination Distance

20 m (65.6 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR)

Pan/Tilt/Rotation Range

Tilt: 0°–180°

Lens Type

Fixed-focal

Mount Type

Focal Length

2.1 mm; 2.8 mm

Max. Aperture

2.1 mm: F2.0

2.8 mm: F2.0

Field of View

2.1 mm: H: 133°; V: 77°; D: 153°

2.8 mm: H: 106°; V: 55°; D: 126°

Iris Type

Fixed iris

Close Focus Distance

2.1 mm: 0.3 m (0.98 ft)

2.8 mm: 0.5 m (1.64 ft)

DORI Distance

Detect

Observe

Recognize

Identify

2.1 mm

31.3 m (102.7 ft)

12.5 m

(41 ft)

6.3 m

(20.7 ft)

3.1 m

(10.2 ft)

2.8 mm

38.6 m (126.6 ft)

15.4 m

(50.5 ft)

7.7 m

(25.3 ft)

3.9 m

(12.8 ft)

Video

Frame Rate

CVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps;
AHD: 1080p@25/30fps; 720p@25/30fps;
TVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps;
CVBS: 960H

Resolution

1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC/HLC/DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

CE/FCC, UL, IP6K9K, EN50155, E-MARK

Audio Interface

Built-in Mic

Video Output

1-channel CVI/CVBS/AHD/TVI switchable video output (Aviation connector)

Aviation Connector Interface

1-power

2-video ground

3-power ground

4-video

Power

Power Supply

12V ±30% DC

Power Consumption

Max 2.3W (12V DC, IR on)

Environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F); <95% (non-condensation)

Storage Temperature

–40°C to +60°C (–40°F to 140°F); <95% (non-condensation)

Protection Grade

Structure

Casing

Metal

Dimensions

107.3 mm × 74.9 mm × 54.2 mm (4.23″ × 2.95″ × 2.15″)

Net Weight

0.33 kg (0.73 lb)

Gross Weight

0.44 kg (0.97 lb)

Papildomi žemėlapiai	Lietuvos Offroad
Įspėjamieji signalai kameroje (TiOC)	Nėra
Matinimas	12V
Darbinė temperatūra	-40°C ~ +60°C
Šviesos kompensavimai	BLC / HLC / DWDR
Papildomas Audio IN/OUT	Nėra
Integruotas mikrofonas	Yra
Skaitmeninis artinimas	Taip, įrašymo įrenginiu
Optikos tipas	Fiksuotas objektyvas
Matymo kampas horizontaliai	106°
Objektyvas	3.6mm
Papildomi sensoriai	Nėra
Kurpusas	Cilindrinis
Full Color klasė	Ne
LED pašvietimas	Nėra
Naktis IR (Infrared) pašvietimas	Iki 20m
Jautrumas šviesai spalvotu vaizdu	0.02Lux
Matrica (sensorius)	1/2.7" CMOS
Kadrų skaičius, FPS	25/30fps@1080P, 25/30/50/60fps@720P
Rezoliucija	1080P (1920×1080)
Raiška Mpix	2 Mpix
Kameros klasė	Automobilinė
El.suvartojimas su IR	2.3W
