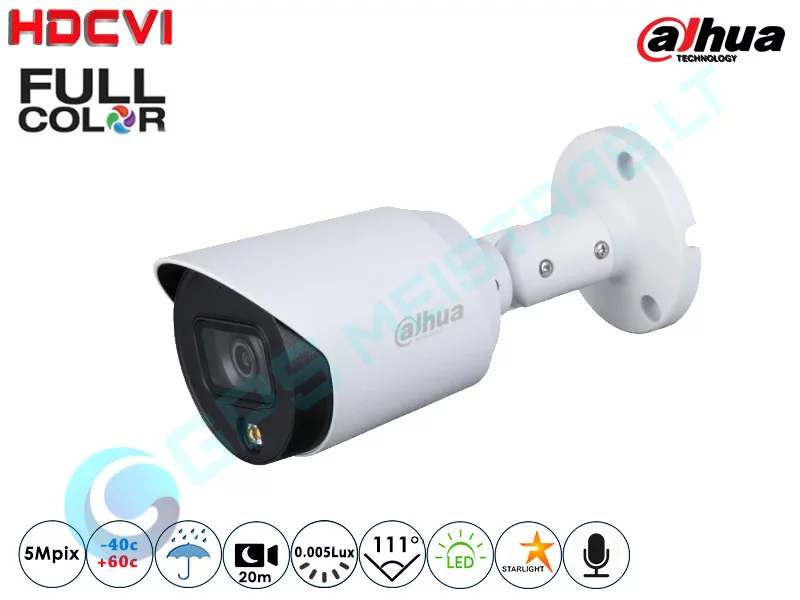

Dahua Cilindrinė CVI Kamera 5Mpix Raiška 1509 LED

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

2592 (H) × 1944 (V), 5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio

>65dB

Minimum Illumination

0.005Lux/F1.2, 0Lux White Light on

Fill Light (White Light) Distance

Distance up to 20 m (65.61 ft)

Fill Light On/Off Control

Auto; manual

Fill Light Number

1

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

3.6 mm

Max. Aperture

F1.2

Field of View

3.6 mm: 111° × 83° × 56°

(diagonal × horizontal × vertical)

Iris Type

Fixed iris

Close Focus Distance

3.6 mm: 2.1 m (6.89 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

80.0 m (262.5 ft)

32.0 m (105.0 ft)

16.0 m (52.5 ft)

8.0 m

(26.2 ft)

Video

Frame Rate

CVI:
PAL: 5M@20fps, 4M@25fps, 1080P@25fps;
NTSC: 5M@20fps, 4M@30fps, 1080P@30fps
AHD: PAL: 5M@20fps, 4M@25fps;
NTSC: 5M@20fps, 4M@30fps
TVI: PAL: 5M@20fps, 4M@25fps;
NTSC: 5M@20fps, 4M@30fps
CVBS: PAL: 960H;
NTSC: 960H

Resolution

5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (704 × 576/704 × 480);

BLC

BLC/HLC/WDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Interface

Audio Input

Built-in mic (-A)

Power

Power Supply

12V ±30% DC

Power Consumption

Max 3.0W (12V DC, White Light on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

174.5 mm × 70.6 mm × 72.3 mm (6.87″ × 2.78″ × 2.85″)

Net Weight

0.33 Kg (0.73 lb)

Gross Weight

0.44 Kg (0.97 lb)
