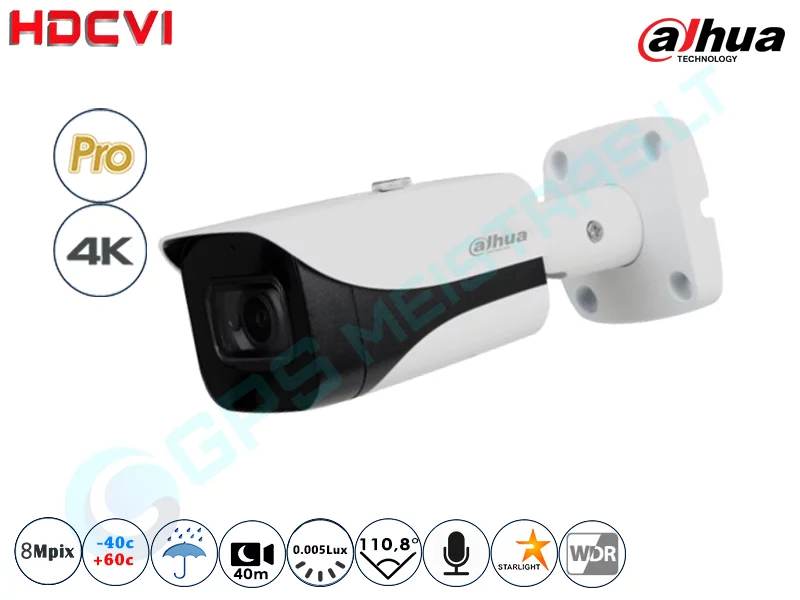

Dahua Cilindrinė CVI Kamera 8Mpix Raiška 2802

Original price was: $146.00.Current price is: $99.99.

SKU: Z3BZB 9619116892 Categories: HD-CVI sistema, HD-CVI vaizdo kameros, Security Cameras Tag: Dahua

Shop with confidence, we guarantee quality.
The Quality Choice for Smart Shoppers
Your happiness, our mission.
Shop with ease, buy with confidence.

4K HD-CVI STARLIGHT kupolinė vaizdo kamera, 2.8 mm fiksuotas objektyvas, objektyvo apžvalgos kampas 110.8°, IR pašvietimas iki 40 m. HD-CVI kameros pasižymi gera vaizdo kokybe, gera kaina bei lengva instaliacija. Dėl šių priežasčių jos dominuoja CCTV sprendimų pasiūloje kaip idealus kainos ir kokybės santykis, idealiai tinkantis atnaujinti seną analoginę sistemą.

Techninės charakteristikos:

Camera

Image Sensor

1/1.8″ CMOS

Effective Pixels

3840(H)×2160(V), 8MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Minimum Illumination

0.005Lux/F1.6, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 40m (130feet)

IR On/Off Control

Auto / Manual

IR LEDs

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (2.8mm, 6mm Optional)

Max Aperture

Angle of View

H: 87° (110.8°/55°)

Focus Control

Close Focus Distance

2500mm (1800mm, 6100mm)

98.43” (70.87”, 240.2′)

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Definition

Distance

Detect

25px/m (8px/ft)

2.8mm:84m(276ft)

3.6mm: 104m(341ft)

6mm:164m(538ft)

Observe

63px/m (19px/ft)

2.8mm:34m(112ft)

3.6mm:42m(138ft)

6mm:66m(217ft)

Recognize

125px/m (38px/ft)

2.8mm:17m(56ft)

3.6mm: 21m(69ft)

6mm: 33m(108ft)

Identify

250px/m (76px/ft)

2.8mm:8m(26ft)

3.6mm:10m(33ft)

6mm:16m(52ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video

Resolution

8MP (3840×2160)

Frame Rate

15fps@4K, 20fps@6MP, 25 / 30fps@4MP

Video Output

1-channel BNC high definition video output / CVBS video output (DIP switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

120dB

Gain Control

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

1ch in & Built-in Mic

Eelectrical

Power Supply

12V DC ±30%

Power Consumption

Max 6.8W (12V DC, IR on)

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Ingress Protection & Vandal Resistance

Construction

Casing

Aluminium

Dimensions

179.9mm×70mm×70mm (7.08″×2.76″×2.76″)

Net Weight

0.42kg (0.93lb)

Gross Weight

0.53kg (1.17lb)

Kurpusas	Cilindrinis
Objektyvas	2.8 mm
Matinimas	12V
Darbinė temperatūra	-30°C ~ +60°C
Šviesos kompensavimai	BLC / HLC / WDR
Papildomas Audio IN/OUT	Yra
Integruotas mikrofonas	Yra
Skaitmeninis artinimas	Taip, įrašymo įrenginiu
Optikos tipas	Fiksuotas objektyvas
Matymo kampas horizontaliai	87°
Įspėjamieji signalai kameroje (TiOC)	Nėra
Kameros klasė	2 klasė
Papildomi sensoriai	Nėra
Full Color klasė	Ne
LED pašvietimas	Nėra
Naktis IR (Infrared) pašvietimas	Iki 40m
Jautrumas šviesai spalvotu vaizdu	0.005Lux
Matrica (sensorius)	1/1.8" CMOS
Kadrų skaičius, FPS	15fps@4K, 20fps@6MP, 25/30fps@4MP
Rezoliucija	4K (3840×2160)
Raiška Mpix	8 Mpix
El.suvartojimas su IR	8W
