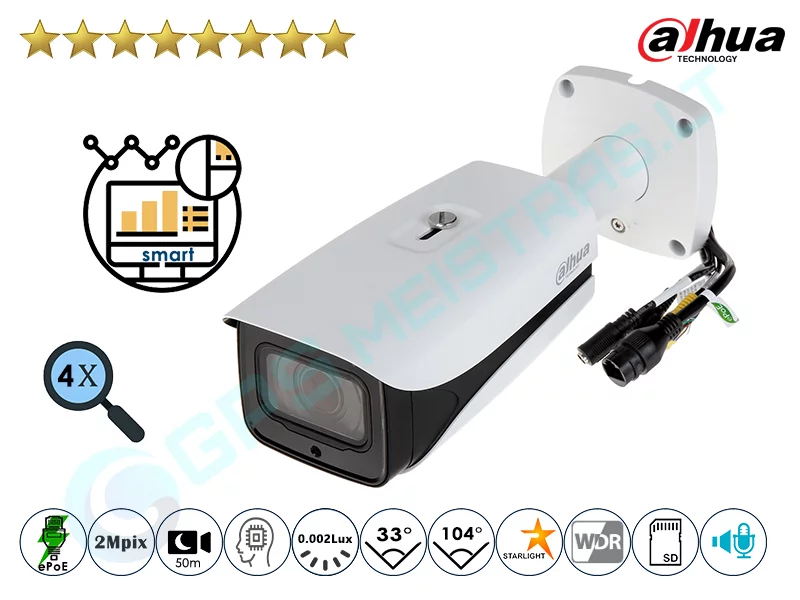

Dahua Cilindrinė IP Kamera 2Mpix Raiška, Zoom 4x, 8232Z

Camera

Image Sensor

1/1.8” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.002Lux/F1.53 (Color,1/3s,30IRE)

0.01Lux/F1.53 (Color,1/30s,30IRE)

0Lux/F1.53(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 50m(164ft)

IR On/Off Control

Auto/ Manual

IR LEDs

4

Lens

Lens Type

Motorized /Auto Iris(HALL)

Mount Type

Board-in

Focal Length

4.1~16.4mm motorized

Max. Aperture

F1.53

Angle of View

H: 104˚~33 ˚ V:57 ˚ ~18 ˚

Optical Zoom

4x

Focus Control

Motorized

Predictive Focus Algorithm (PFA)

Support

Close Focus Distance

0.5m(1.64ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

57m(187ft)

23m(75ft)

11m(36ft)

6m(20ft)

T

137m(449ft)

55m(180ft)

27m(89ft)

14m(49ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection, People Counting, Heat Map

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480) / VGA(640×480)/ CIF(352×288/342×240)

Frame Rate

Main Stream: 1080P(1~50/60fps)

Sub Stream: D1 (1 ~ 50/60fps)

Third Stream: 1080P(1~50/60fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~ 10240Kbps H.265: 14~ 6144Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)/ SSA

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

Support

Smart IR

Support

Defog

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 Port(For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

2 channel In: 5mA 5VDC

1 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, PoE+(802.3at)(Class 4)

Power Consumption

<13W

Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Storage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”)

Net Weight

1.12Kg (2.47lb)

Gross Weight

1.52Kg (3.35lb)
