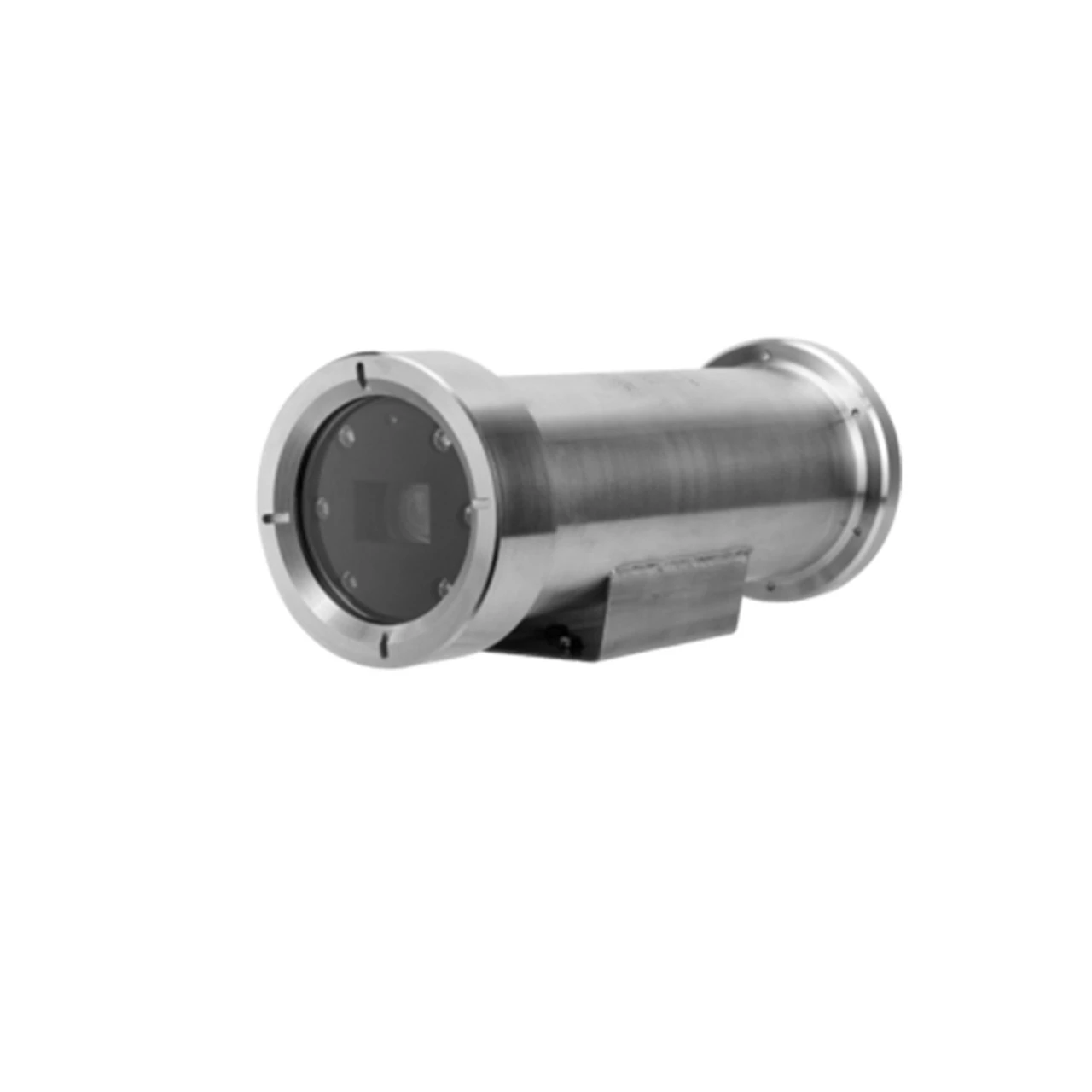

Dahua DH-EPC230U 2MP IR Explosion-Protected ATEX Outdoor Bullet IP Security Camera
The Dahua Explosion-protected Camera series features a powerful optical zoom lens and a rugged design that meets the ATEX and the IECEx standards. This camera series uses a 1/2.8-in. STARVIS CMOS imager with a 30x optical zoom lens, and provides an all-in-one solution for capturing long-distance video surveillance in critical environments. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The explosion-protected stainless steel camera is designed to prevent ignition of surrounding gasses or combustible dust, and is the ideal surveillance solution for use in the oil production, pipeline, refinery, chemical, and grain storage industries.
Key features:
- 1/2.8-in. 2 MP STARVIS CMOS Sensor
- Powerful 30x Optical Zoom
- Starlight Technology for Ultra-low Light Sensitivity
- Triple-stream Encoding
- H.265 and H.264 Dual Codecs
- 1080p at 60 fps Maximum Resolution
- Maximum IR Distance up to 100 m (328ft)
- Intelligent Video System
- 304 Stainless Steel Housing
- ATEX and IECEx Certifications
- IP68 Ingress Protection
Accessories:
- Stainless Steel Mount Adapter DH-ZAZ100W
- Stainless Steel Wall Mount DH-EXB100
- Junction Box (for use with Explosion-protected Cameras) DH-ZA-JXD4
- Junction Box (for use with Explosion-protected Cameras) DH-ZAJ300
- Flexible Cable Protection Pipe DH-GE1500
H.265,
67°Field of View
2°Field of View
60fps at 1080P
Motorized (Automatic Zoom) Lens
4.5~135mm Lens
CMOS
1/2.8″ Sensor
IP68
White
Outdoor
| Camera Style | Bullet |
|---|---|
| Optical Zoom | 30x Optical Zoom |
| Technology | Network (IP) |
| Special Technologies | Dahua Starlight Technology |
| Sensor Type | CMOS |
| Sensor Size | 1/2.8" |
| SD Card Support | SD Card Supported |
| Resolution | 2MP |
| Protection Code | IP68 |
| Product Series | Dahua All-environment Series |
| Night Vision Type | Night Vision (IR) |
| Color | White |
| Night Vision Range (ft) | 328 |
| Max. FPS and Resolution | 60fps at 1080P |
| Lens Type | Motorized (Automatic Zoom) Lens |
| Lens Size | 4.5~135mm |
| Field of View (Horizontal) | 67 2 |
| Environmental | Outdoor |
| Durability | Weatherproof |
| Compression | H.265 |
| Compatible Integration (API) | ONVIF |
| Warranty | 5-year Manufacturer Warranty |
