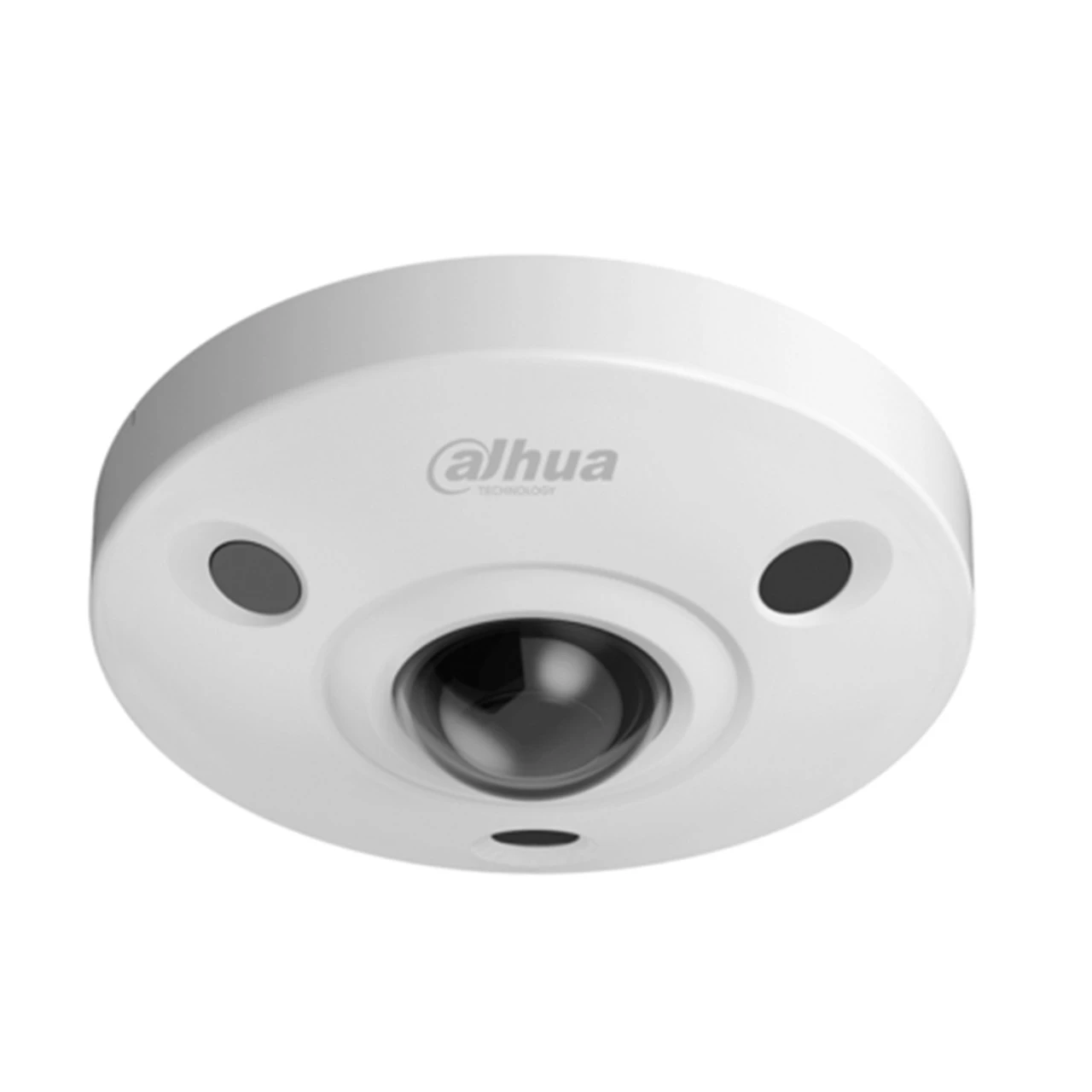

Dahua DH-IPC-EBW81230N-M12 12MP 4K IR Mobile Outdoor Fisheye IP Security Camera
Dahua Fisheye Cameras provide detailed panoramic views in a compact, low-profile design. The progressive-scan sensor combined with a fisheye lens provide a high-quality 180° panoramic view without blind spots, making the camera the ideal solution for wide and open areas, such as airports, shopping malls and banks. The camera offers multiple dewarp modes for different installations and configurations that enhance the video for a specific scene. The IP67 environmental protection rating and the IK10 vandal resistance ensure the camera operates in the harshest environments.
Key features:
- 1/1.7-in. 12 MP Progressive-scan CMOS Sensor
- 12 MP (4000 x 3000) at 25 fps Maximum Resolution
- Triple-stream Encoding
- H.265 and H.264 Dual Codecs
- Multiple Dewarp Modes
- Day/Night (ICR), 3DNR, AWB, AGC, BLC
- Intelligent Video System with Intelligent Business Analysis
- Maximum IR Distance 10 m (33ft)
- IP67 Ingress Protection, IK10 Vandal Resistance
- 5-year Warranty (for products sold through an authorized Dahua dealer)
Accessories:
- Mount Adapter PFA110
- Ceiling Mount Bracket PFB300C
- EOL: Pole Mount Bracket DH-PFA152
- Fisheye Mount Adapter PFA105
- Mount Adapter PFA100
- Wall Mount Bracket with Junction Box PFB302S
H.264,
H.265,
180°Field of View
25fps at 4000 x 3000
Fixed Lens
1.98mm Lens
CMOS
1/1.7″ Sensor
IP67
IK10
White
Outdoor
| Angle of View | 180 Degree |
|---|---|
| Max. FPS and Resolution | 25fps at 4000 x 3000 |
| Warranty | 5-year Manufacturer Warranty |
| Technology | Network (IP) |
| Sensor Type | CMOS |
| Sensor Size | 1/1.7" |
| Resolution | 12MP (4K) |
| Protection Code | IP67 IK10 |
| Product Series | Dahua Mobile Series |
| Night Vision Type | Night Vision (IR) |
| Night Vision Range (ft) | 33 |
| Lens Type | Fixed Lens |
| Camera Style | Fisheye |
| Lens Size | 1.98mm |
| Lens Angle Type | Panoramic |
| Field of View (Horizontal) | 180 |
| Environmental | Outdoor |
| Durability | Vandal Proof Weatherproof |
| Day/Night | ICR (True Day/Night) |
| Compression | H.264 H.265 |
| Compatible Integration (API) | ONVIF |
| Color | White |
| Wide Dynamic Range (WDR) | Digital WDR (D-WDR) |
