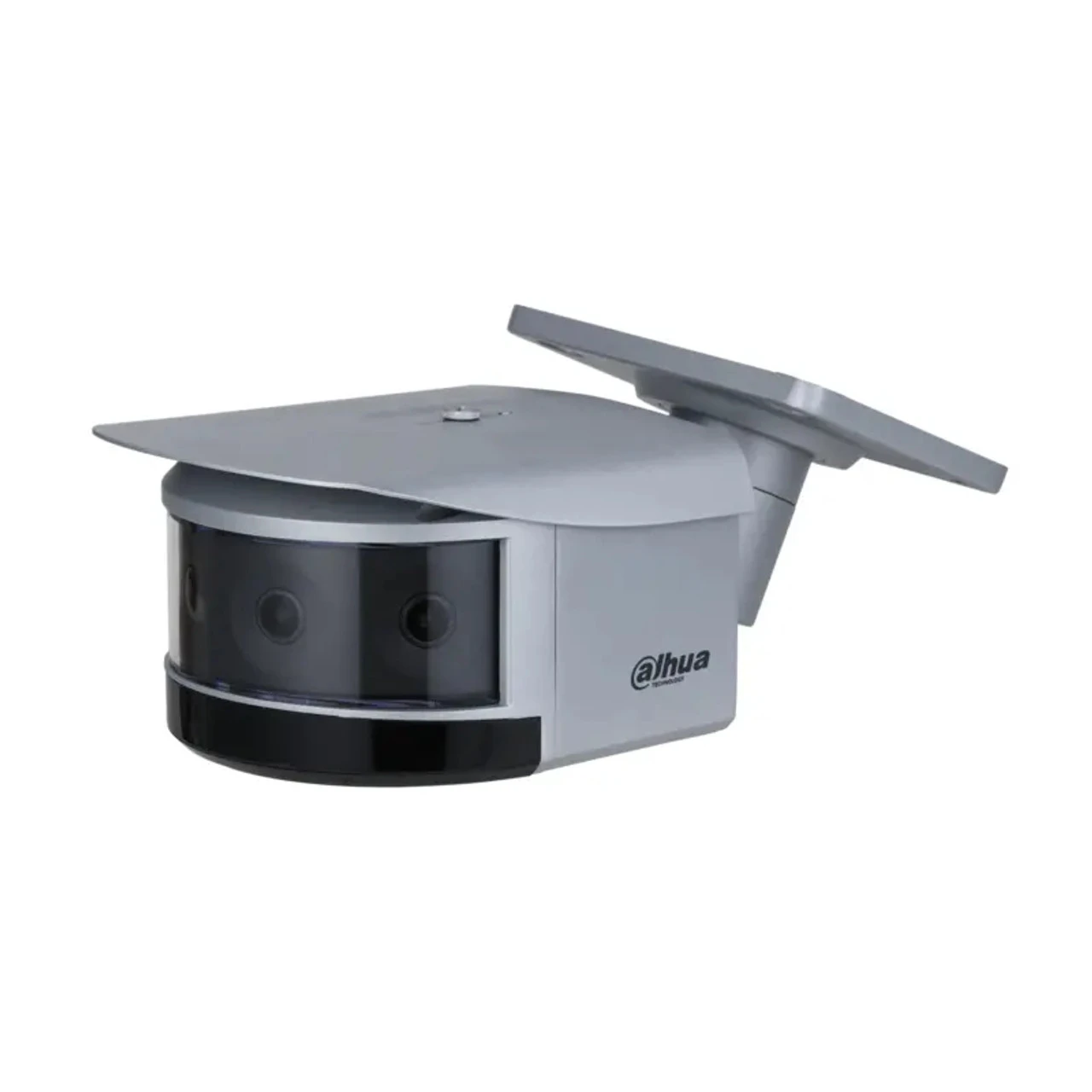

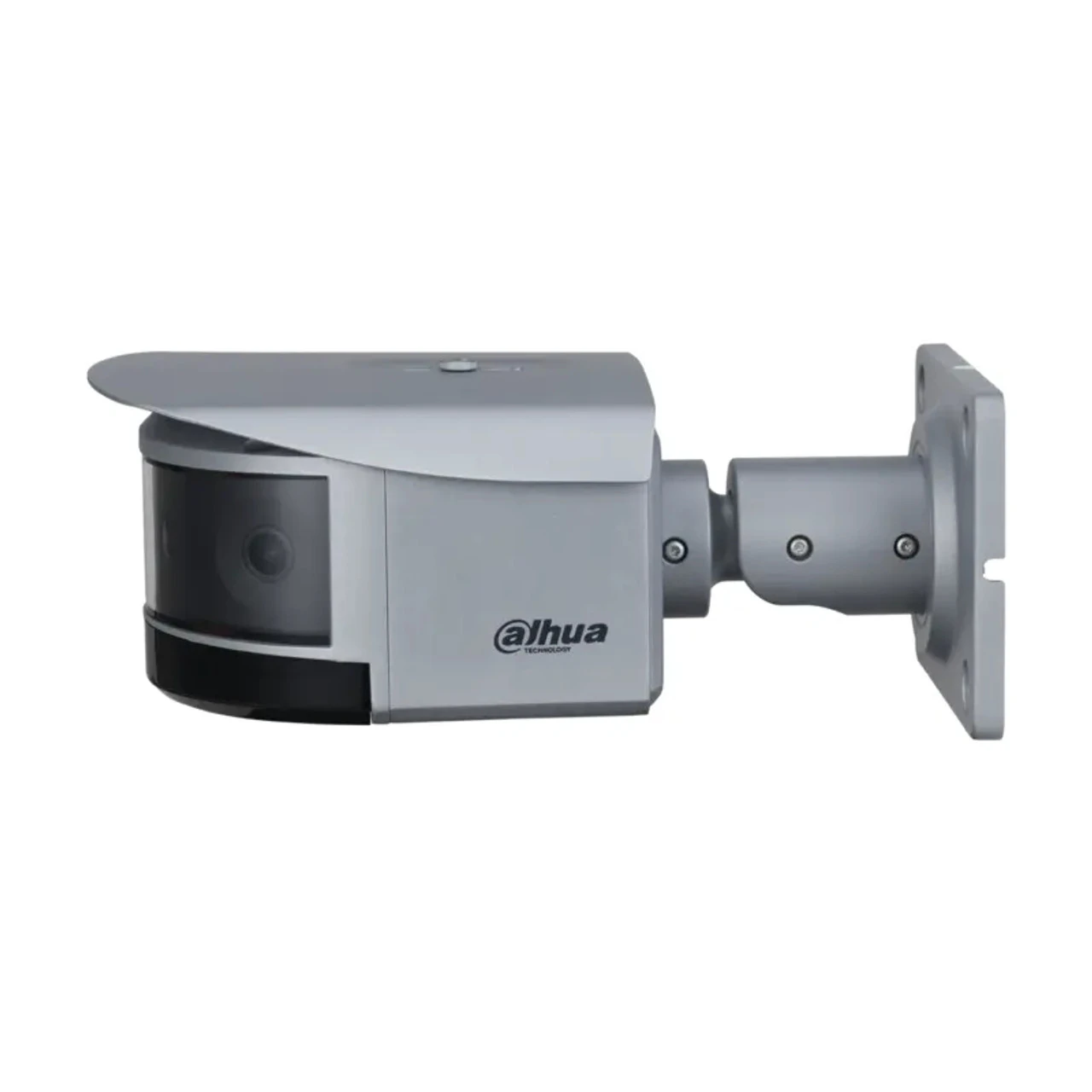

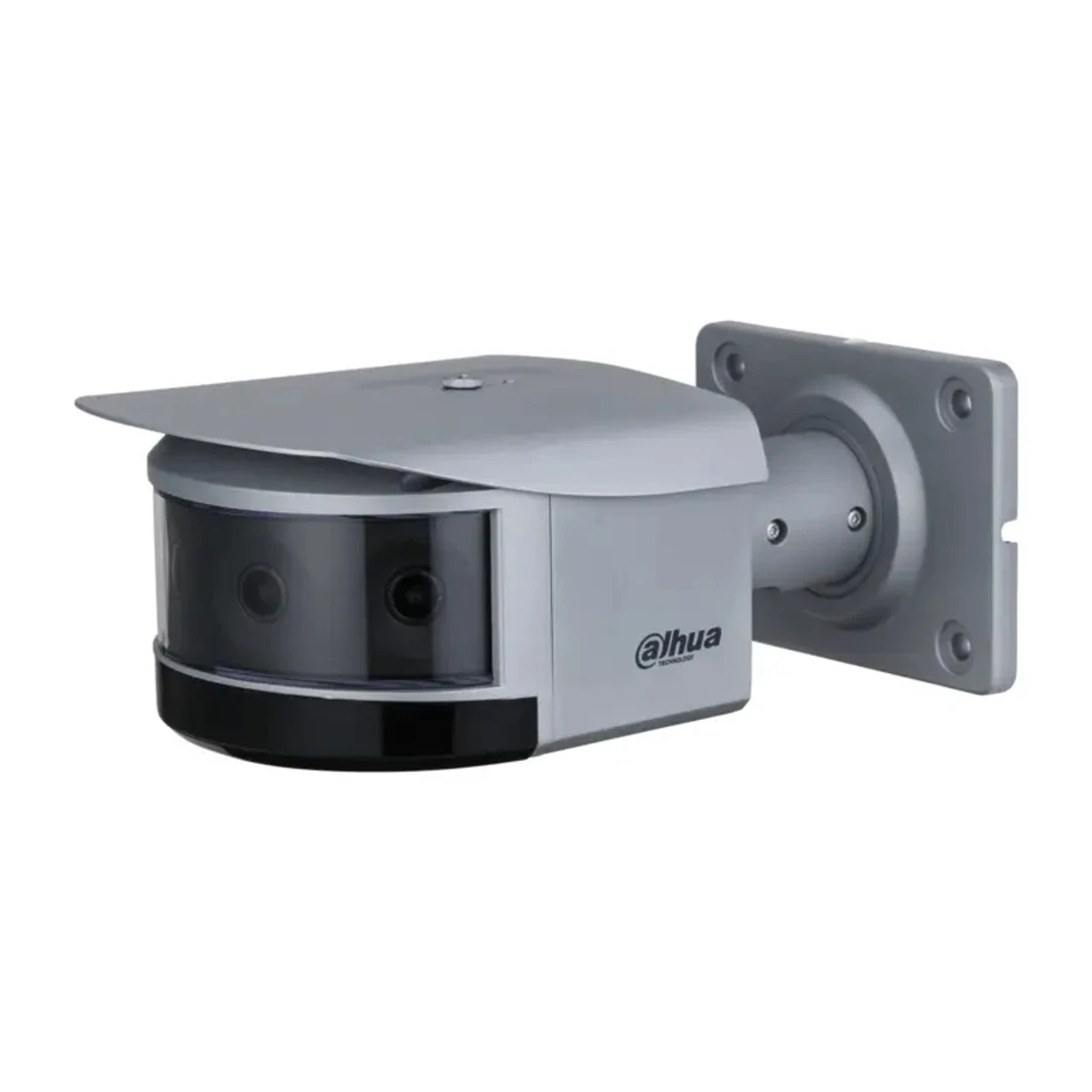

Dahua DH-IPC-PFW83242-A180-S2 4x 8MP Night Vision Outdoor Panoramic Multi-sensor IP Security Camera

Dahua DH-IPC-PFW83242-A180-S2 4x 8MP Night Vision Outdoor Multi-sensor Panoramic Bullet IP Security Camera

Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

The splicing camera supports a 180° panoramic view and 4-channel hardware splicing to realize HD panoramic surveillance. The camera supports crowd situation analysis, vehicle situation analysis, and perimeter protection. It is widely applied in various scenes such as squares, airports, safe city, and traffic.

With advanced splicing algorithm, Dahua Panoramic Splicing technology deletes overlapped area and splices multiple images to be a complete panorama. The field of view of the spliced image can be up to 360°, which largely improves surveillance efficiency and user experience. Generally, after splicing, the field of view of four-sensor camera can be 180°, and the field of view of eight-sensor camera can be 360°.

With deep learning algorithm, Dahua Crowd Density technology can detect the crowd density on the image, and display it on heat map; it can detect people quantity and density in selected area and set threshold. When the number or density is larger or smaller than the threshold, it triggers linkage.

With deep learning algorithm, Dahua Vehicle Density technology analyses the vehicle situation in the image, such as vehicle number in selected area. You can set threshold, and when the number is larger or smaller than the threshold, it triggers linkage.

Key Features:

• 4 x 8MP, 1/1.8″ CMOS image sensor, low illuminance, high image definition
• Outputs max. 32MP (8192 × 3840) @25/30 fps; with intelligent functions enabled, it can output 32MP (8192 × 3840) @20 fps
• Built-in IR LED, and the max. illumination distance is 30 m.
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Intelligent functions: Crowd Distribution Map, Vehicle Density, Perimeter Protection, EPTZ.
• Support image correction.
• Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256G SD card.
• 12 VDC/24 VAC/PoE power supply; easy for installation
• IP67 and IK10 protection
• AR panorama technology; various AR tags can be overlaid.
