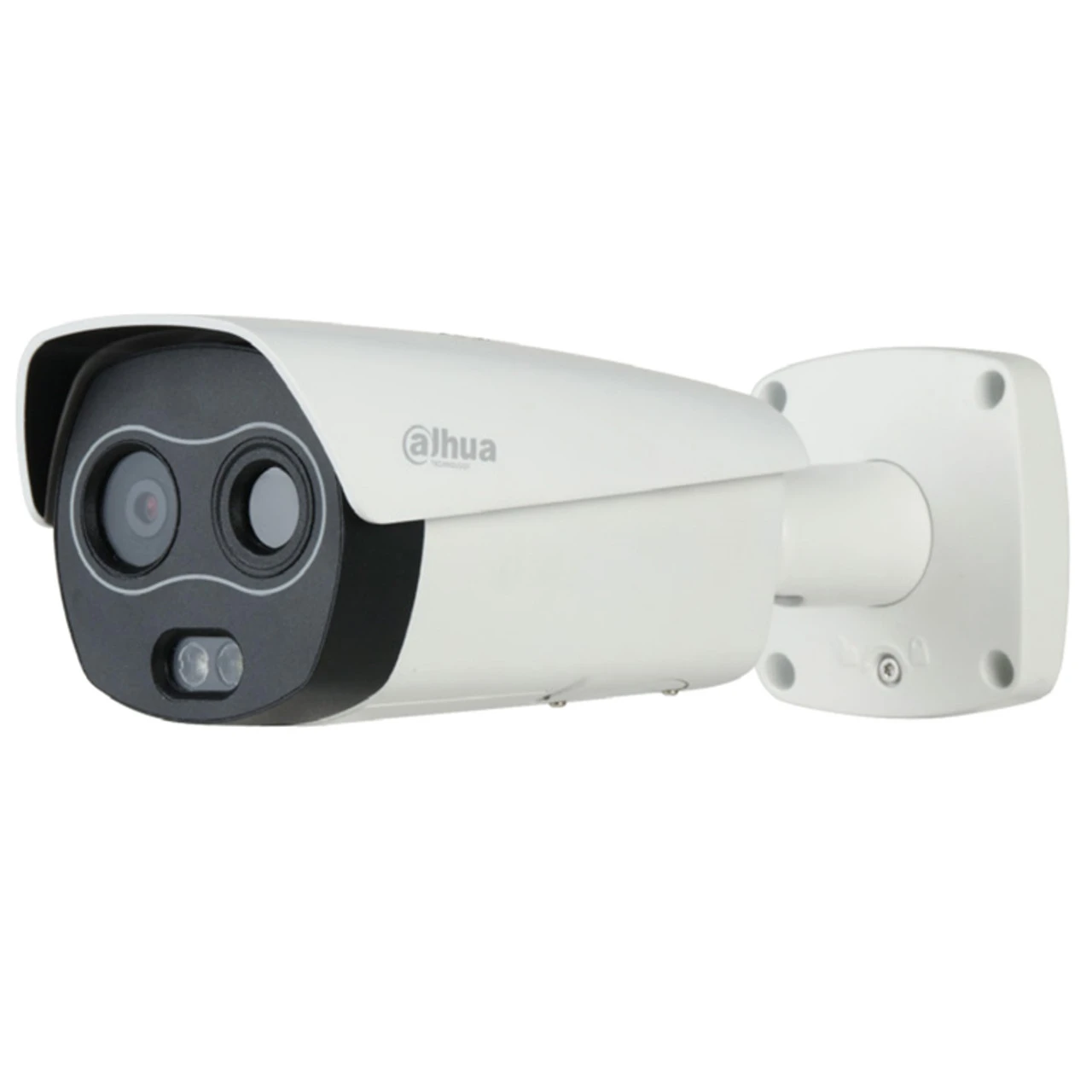

Dahua DH-TPC-BF3221N-TB3F4-HTM Thermal/Visible Hybrid IP Security Camera With Body Temp Measurement

Dahua DH-TPC-BF3221N-TB3F4-HTM Thermal/Visible Hybrid IP Security Camera with Body Temp Measurement

Featuring a dual lens, fixed bullet camera, this series provides an all-in-one solution for capturing video surveillance for indoor and outdoor applications. Together with Thermal and Visible Technology, the camera is the perfect solution for dark, small area monitoring applications. The series combines one thermal camera for monitoring in total darkness and one visible camera with Smart IR for confirming details.

Key Features:

• Resolution:
• Thermal: 256×192 VOx uncooled thermal sensor technology
• Visible: 1/2.8″ 2 Megapixel progressive scan Sony cmos
• Lens:
• Thermal: 3.5mm Fixed Lens, FOV: H: 50.6°
• Visible: 4mm Fixed Lens, H: 84° V: 45°
• Athermalized Lens (thermal camera), Focus-free
• Support ROI, Motion Detection, Color Palettes
• Support measure body temperature,
• Measurement Accuracy: Max (±0.3°C, with black-body)
• Active deterrence with white light & siren
• Built-in 2/2 alarm in/out
• Micro SD memory,
• Weatherproof IP67,
• PoE
• ONVIF

Uncooled Vox Technology

Dahua thermal cameras use uncooled Vox sensor technology . Because of small size and better performance, it’s cost-effective solution for thermal security.

High Sensitivity

High thermal sensitivity(<50mK) makes cameras capture more image details and temperature difference information.

Active Deterrence

Active deterrence is to warn off intruders actively with white light and siren even before users are aware of the incidence. Once an intrusion is detected, the white light will turn on and the siren will buzzer to alert the intruder. The white light and the content of siren is configurable.

Optional Accessories:

• PFA121 Junction Box
• PFA151 Corner Mount
• PFA152-E Pole Mount
• DH-PFM321D-US 12VDC, 1 A Power Adapter

Type Part Number	Part Number
DH-TPC-BF3221-T	DH-TPC-BF3221P-TB3F4	Thermal: 256×192 3.5mm lens Visible:  2MP  4mm lens
	DH-TPC-BF3221N-TB3F4
DH-TPC-BF3221-T	DH-TPC-BF3221P-TB7F8	Thermal: 256×192 7mm lens Visible: 2MP 8mm lens
	DH-TPC-BF3221N-TB7F8

Note: Each thermal camera requires a blackbody device for a 1 to 1 ratio. The set also requires two tripods and two connectors, one for the camera and one for the blackbody device.
