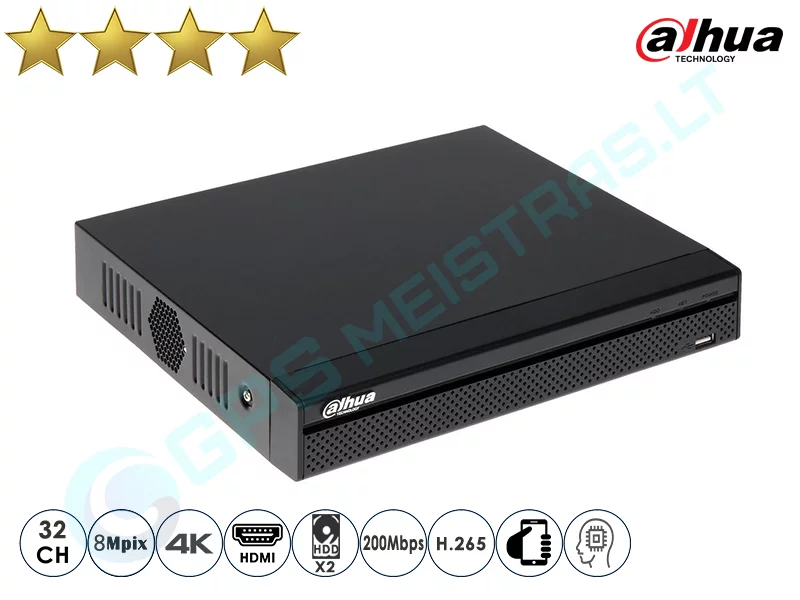

Dahua IP NVR įrašymo įrenginys 4232 4K

System

Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

Display

Interface

1 HDMI, 1 VGA

Resolution

3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

8CH: 1/4/8/9

16/32CH: 1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22×18), Video Loss & Tampering

Alarm input

4 Channel, Low Level Effective,

Green Terminal Interface

Relay Output

2 Channel, NO/NC Programmable,

Green Terminal Interface

Playback and Backup

Playback

8CH: 1/4/8

16/32CH: 1/4/8/16

Search Mode

Time/Date, Alarm, MD & Exact search

(accurate to second), Smart search

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play,

Next File, Previous File, Next Camera,

Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

2 SATA III Port, Up to 6 TB capacity for each HDD

HDD Mode

Single

eSATA

N/A

Auxiliary Interface

USB

2 USB Ports (1 USB2.0, 1 USB3.0)

RS232

N/A

RS485

N/A

Third-party Support

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom,

Canon, CP Plus, Dynacolor, Honeywell, Panasonic,

Pelco, Samsung, Sanyo, Sony, Videotec, and more

Audio and Video

IP Camera Input

8/16/32 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Recording

Compression

H.265/H.264

Resolution

8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

Record Rate

200Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record:

1 ~ 30 sec, Post-record: 10 ~ 300 sec

Network

Interface

1 RJ-45 Port (10/100/1000Mbps)

Ethernet Port

1 Independent 1000Mbps Ethernet Port

PoE

N/A

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,

IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, CGI Conformant

Electrical

Power Supply

DC12V/4A

Power Consumption

<6.9W (Without HDD)

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

1U, 375mm×281.5mm×56mm

(14.8″ x 11.1″ x2.2″)

Net Weight

1.6kg (3.5 lb) (without HDD)

Gross Weight

3.2kg(7.1 lb)(without HDD)
