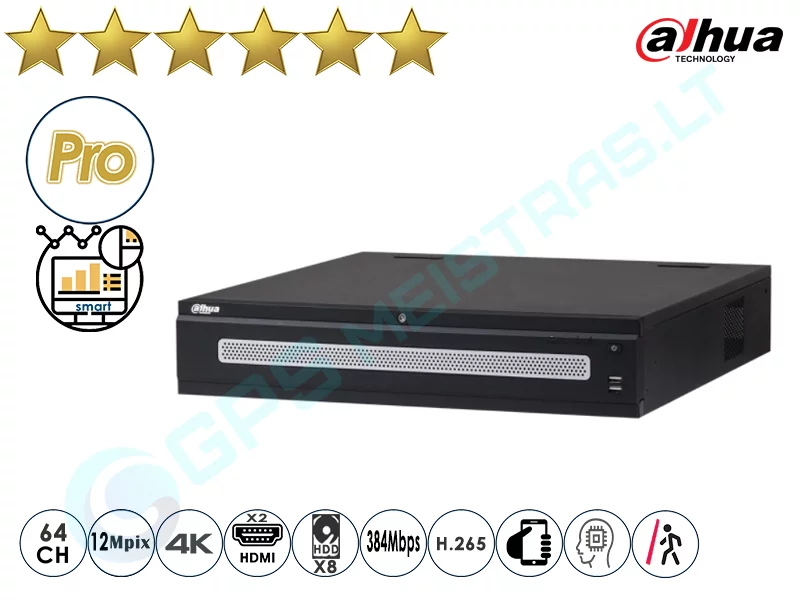

Dahua IP NVR įrašymo įrenginys 608 64 4K

Profesionalus 64 kanalų tinklinis vaizdo įrašymo įrenginys (NVR) su 2 maitinimo šaltiniais (1 atsarginis). Vaizdo stebėjimas internetu ir mobiliuoju telefonu per aplikaciją. Naujos kartos įrašymo įrenginiai geba ne tik kaupti ir atvaizduoti vaizdo medžiagą, bet taip pat palaiko išmaniąsias funkcijas bei vaizdo analitiką, tai pakelia CCTV apsaugos sprendimus į aukštesnį lygį. Papildomos tinklinio įrašymo įrenginio įvestys ir sąsajos leidžia vaizdo stebėjimo sistemą sujungti su kitomis valdymo, apsaugos, bei automatikos sistemomis.


• 64 kanalų Ultra 4K H.265 tinklinis vaizdo įrašymo įrenginys;
• Objekto sekimas ir išmanios funkcijos;
• Palaiko RAID 0/1/5/6/10;
• Iki 12MP rezoliucijos peržiūrai ir įrašui;
• Iki 384Mbps įeinantis srautas;
• Intel procesorius;
• Palaiko 8 SATA HDD, iki 8TB kiekvienas;
• 4 USB (2 USB 2.0, 2 USB 3.0);
• Su papildomu maitinimo šaltiniu.


  System

  Main Processor

  Industrial embedded micro-processor

  Operating System

  Embedded Linux

  Operation Interface

  Web/local GUI

  Perimeter Protection by Camera

  Performance

  24 channels

  AI Search

  Search pictures by channel, time, event type

  Face Recognition by Camera

  Performance

  24 channels

  Face Attributes

  6 attributes: Gender, age, glasses, expression, mouth mask, and beard

  AI Search

  Search pictures by channel, time and face attributes

  SMD Plus by Camera

  Performance

  32 channels

  AI Search

  Search by target classification (Human, Vehicle)

  Video Metadata by Camera

  Performance

  12 channels

  Human Body

  Top, top color, bottom, bottom color, hat, bag, gender, age, umbrella

  Vehicle

  Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region

  Non-motor Vehicle

  Type, color, number of passengers, helmet

  AI Search

  Support search target video by metadata

  ANPR by Camera

  Performance

  8 channels

  Stereo Analysis by Camera

  Performance

  32 channels

  AI Search

  Search by target classification (Fall Detection, People Approach Detection, People No. Exception Detection, People Staying Detection, Violence Detection)

  Video

  Access Channel

  64/128

  Network Bandwidth

  384 Mbps for access, 384 Mbps for storage and 384 Mbps for forwarding

  Resolution

  12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/ 1080p/960p/720p/D1/CIF/QCIF

  Video Output

  VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1/HDMI2: 3840 × 2160@30 fps, 3840 × 2160@25fps, 1920 × 1080, 1280 × 1024, 1280 × 720 1 channel VGA output, 2 channels HDMI output, VGA and HDMI 1 homologous output, double HDMI heterogeneous output. Support 4K display for both HDMI1 and HDMI2

  Multi-screen Display

  1st Screen: 1/4/8/9/16/25/36/64

  2nd Screen: 1/4/8/9/16

  Third Party Camera Access

  Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more

  Compression

  Video

  Smart H.265+/H.265/Smart H.264+/H.264/MPEG4/MJPEG

  Audio

  AAC/MP2/G726/G729/G722/G723/G711A/G711U/PCM

  Network

  Network Protocol

  HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P

  Mobile Phone Access

  iOS, Android

  Interoperability

  ONVIF (profile T/S/G), CGI, SDK

  Browser

  Chrome, IE9 or later, Firefox

  Record Playback

  Multi-channel Playback

  1/4/9/16

  Record Mode

  Manual, Schedule (General, MD (Motion Detection), Alarm, MD & Alarm, Intelligent, POS)

  Storage Method

  Local HDD and network

  Backup

  Hard drive, USB device, eSATA device

  Playback Function

  1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off

  Storage

  Disk Group

  Support

  Raid Support

  RAID 0/1/5/6/10

  Alarm

  General Alarm

  Motion detection, privacy masking, video loss, local alarm, PIR alarm, IPC alarm

  Anomaly Alarm

  Camera offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly

  Intelligent Alarm

  Perimeter protection, face detection, face recognition, SMD, video metadata (human, motor-vehicle, non-motor vehicle), ANPR, people counting, stereo analysis, crowd distribution, heatmap, video quality diagnosis

  Alarm Linkage

  Record, snapshot, IPC external alarm output, buzzer, log, preset, email

  External Port

  Audio Input

  1 channel, RCA connector

  Audio Output

  1 channel, RCA connector

  HDD

  8 SATA III ports, up to 10 TB for a single HDD

  Alarm Input

  16 channels

  Alarm Output

  8 channels

  eSATA

  1 eSATA

  RS-232

  1 channel, used to debug and pass through serial data

  RS-485

  1 channel, used to control PTZ, and it supports multiple protocols

  USB

  2 front USB 2.0 ports, 2 rear USB 3.0 ports

  HDMI

  2

  VGA

  1

  Network

  2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports

  General Parameter

  Power Supply

  Redundant, AC100V–240V, 50–60 Hz

  Power Consumption

  < 20 W (Without HDD)

  Net Weight

  9.7 kg (21.4 lb) (Without HDD)

  Gross Weight

  12.2 kg (26.9 lb) (Without HDD)

  Product Dimensions

  444 mm × 476 mm × 95 mm (W × L × H) 17.48 inch × 18.74 inch × 3.74 inch (W × L × H)

  Package Dimensions

  571 mm × 618 mm × 219 mm (W × L × H) 22.48 inch × 24.33 inch × 8.62 inch (W × L × H)

  Operating Conditions

  –10°C to +55°C (+14°F to +131°F), +35°C (+95°F) when raid enabled

  Storage Conditions

  0°C to +40°C (+32°F to +104°F)

  Operating Humidity

  10%–93% (RH)

  Storage Humidity

  30%–85% (RH)

  Operating Altitude

  3000 m (9843 ft)

  Certifications

  CE: EN55022, EN55024, EN50130-4, EN60950-1 FCC: Part 15 Subpart B, ANSI C63.4-2014 UL: UL 60950-1 and CAN/CSA C22.2 No.60950-1
