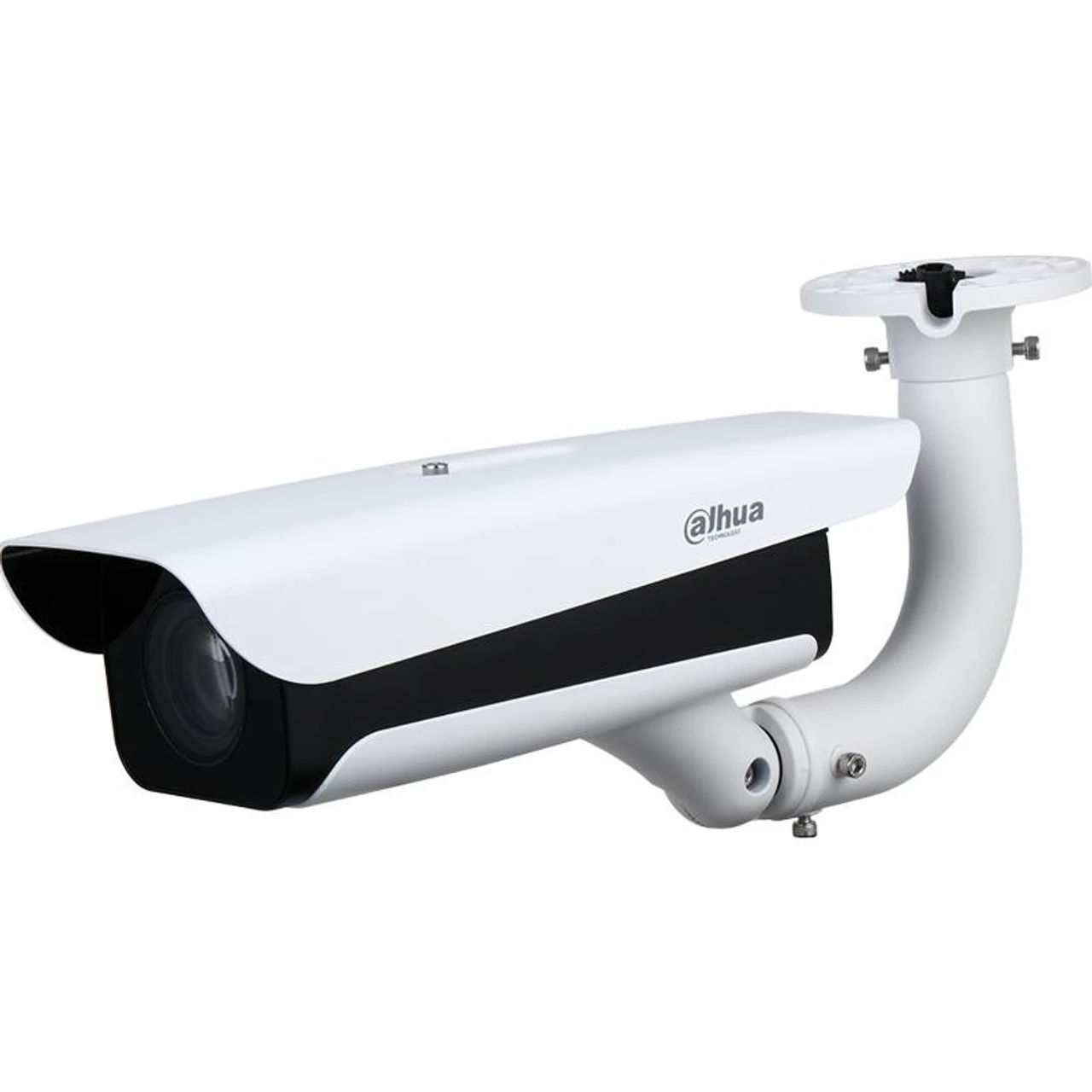

Dahua ITC237-PW6M-IRLZF1050-B 2MP LPC Entrance/Exit IP Security Camera With Bracket (Long Lens)

Dahua ITC237-PW6M-IRLZF1050-B 2MP LPC Entrance/Exit IP Security Camera with Bracket (Long Lens)

The ITC237-PW6M-IRLZF1050-B is a license plate recognition camera
with a recording resolution of 1920 x 1080 (1080p) at 30 frames per
second with a 1/1.8-inSony GS-CMOS sensor. The camera includes a
10 mm to 50 mm motorized vari-focal lens that lets the installer adjust
the zoom angle of the picture, providing long-range video. The camera
recognizes license plates of vehicles traveling up to 80 kph (49 mph). The
camera can be mounted between 8 m and 30 m (26.25ft and
98.43ft) from where the vehicles will be traveling and captures and
recognizes plates from a single lane. The ITC237-PW6M-IRLZF1050-B
coupled with a Dahua NVR or DSS Video Management System offers a
complete traffic management and parking solution.

Key Features:

• 1/1.8-in. 2 MP GS CMOS Sensor
• License Plate Recognition Distance up to 30 m (98.43ft)
• Capture and Recognize License Plates from Vehicles Traveling up to 80 kph (49 mph)
• Dual-stream Encoding
• H.265 and H.264 Dual Codec
• 1080p at 30 fps Maximum Resolution
• 10 mm to 50 mm Motorized Vari-focal Lens
• Maximum IR LED Distance 25 m (82ft)
• 12 VDC, 1 A Power Output
• IP67 Ingress Protection

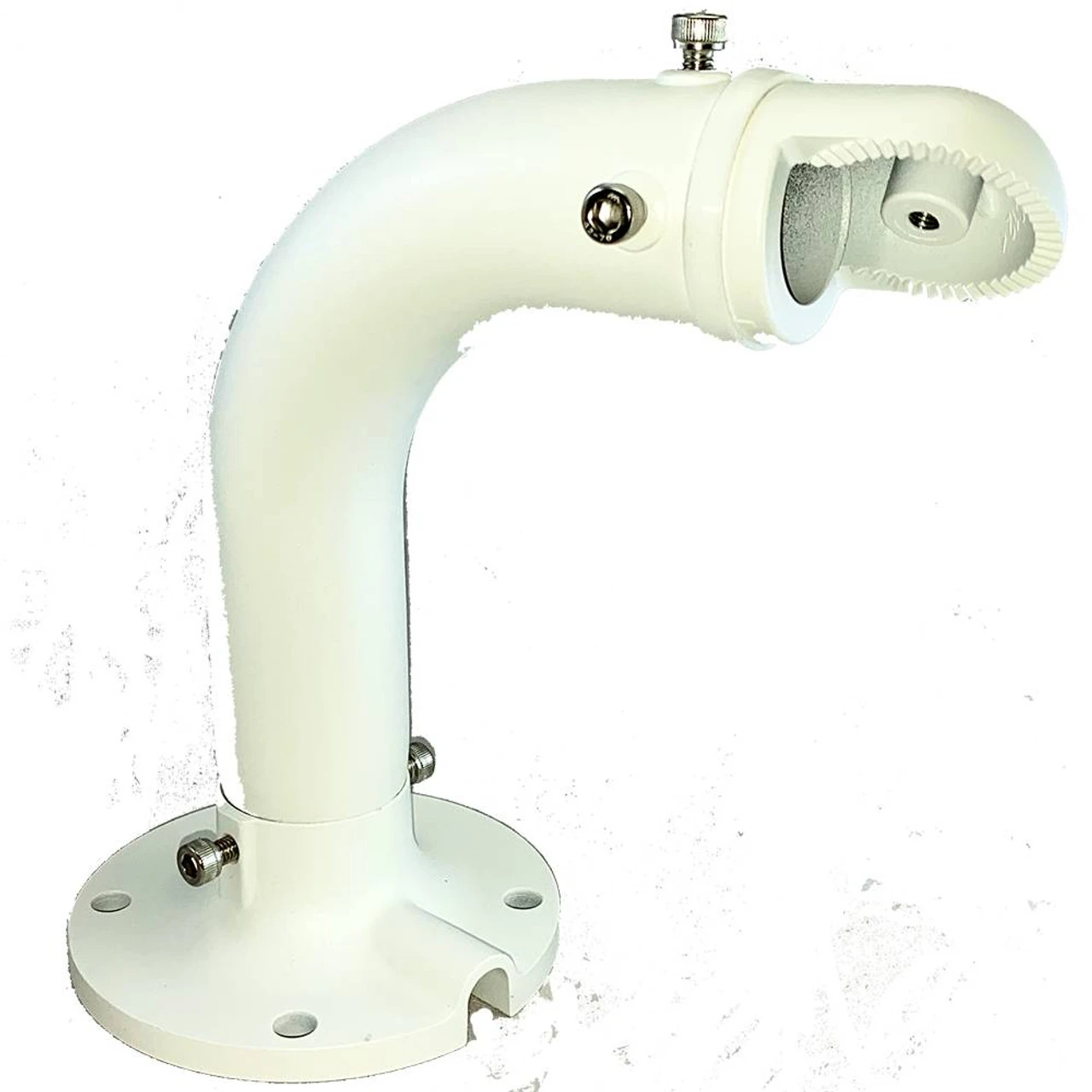

• Mounting Bracket Included
• Five-year Warranty (for products sold through an authorized Dahua Dealer)

License Plate Recognition

The License Plate Recognition camera automatically captures vehicle
license plate images and recognizes license plate numbers and letters.
During playback, an operator can perform a license plate search by Time
and Date to view thumbnail images of all plates captured during the
specified time period or can enter a license plate number to search for
vehicles recorded with that plate. License plate recognition technology
offers effective entrance/exit management, traffic surveillance, and
parking lot monitoring.

High Efficiency Video Coding (H.265)

The H.265 (ITU-T VCEG) video compression standard offers double the
data compression ratio at the same level of video quality, or substantially
improved video quality at the same bit rate, as compared to older video
compression technologies. H.265 offers such impressive compression
by expanding the pattern comparison and difference-coding, improving
motion vector prediction and motion region merging, and incorporating
an additional filtering step called sample-adaptive offset filtering.

Environmental

With a temperature range of –30 °C to +65 °C (–22 °F to +149 °F), the
camera is designed for extreme temperature environments. Subjected to
rigorous dust and water immersion tests and certified to the IP67 Ingress
Protection rating makes it suitable for demanding outdoor applications.
