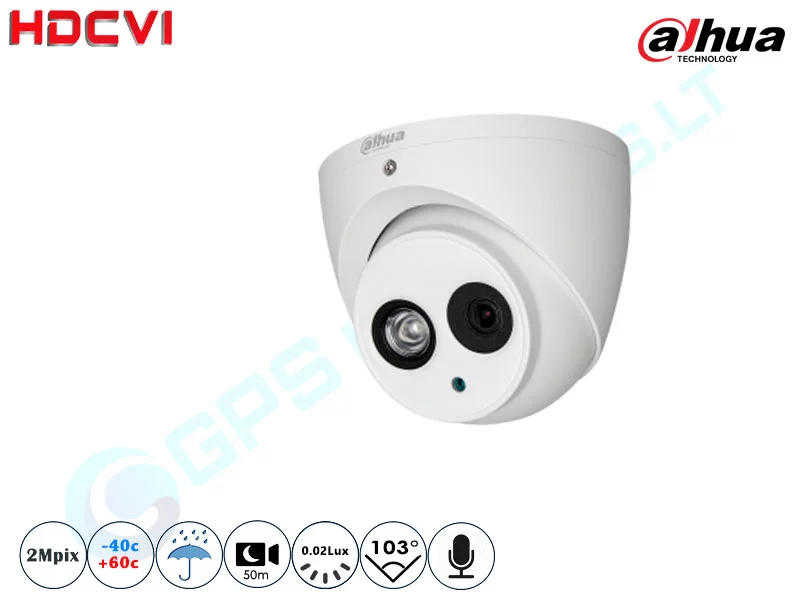

Dahua Kupolinė CVI Kamera 2Mpix Raiška 1200

Original price was: $45.00.Current price is: $31.50.

SKU: Z3BZB 2807702125 Categories: HD-CVI sistema, HD-CVI vaizdo kameros, Security Cameras Tag: Dahua

Shop with confidence, we guarantee quality.
The Quality Choice for Smart Shoppers
Your happiness, our mission.
Shop with ease, buy with confidence.

2 MP HD-CVI Kupolinė vaizdo kamera su integruotu mikrofonu, 2,8 mm fiksuotas objektyvas, objektyvo apžvalgos kampas 103°, IR pašvietimas iki 30 m. HD-CVI kameros pasižymi gera vaizdo kokybe, gera kaina bei lengva instaliacija. Dėl šių priežasčių jos dominuoja CCTV sprendimų pasiūloje kaip idealus kainos ir kokybės santykis, idealiai tinkantis atnaujinti seną analoginę sistemą.

Techninės charakteristikos:

Camera

Image Sensor

1/2.7″ CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.02Lux/F1.85, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 30m (98feet)

IR On/Off Control

Auto / Manual

IR LEDs

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (2.8mm, 6mm Optional)

Max Aperture

F1.85

Angle of View

H: 87.5° (103°, 54.7°)

Focus Control

Close Focus Distance

500mm (900mm, 2000mm)

19.69” (35.43″, 78.74”)

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Definition

Distance

Detect

25px/m

(8px/ft)

2.8mm: 37m(122ft)

3.6mm: 53m(175ft)

6mm: 80m(262ft)

Observe

63px/m

(19px/ft)

2.8mm: 15m(49ft)

3.6mm: 21m(70ft)

6mm: 32m(105ft)

Recognize

125px/m

(38px/ft)

2.8mm: 8m(25ft)

3.6mm: 11m(35ft)

6mm: 16m(52ft)

Identify

250ppm

(76px/ft)

2.8mm: 4m(12ft)

3.6mm: 5m(17ft)

6mm: 8m(26ft)

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video

Resolution

1080P (1920×1080)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

Gain Control

Noise Reduction

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

Built-in Mic

Eelectrical

Power Supply

12V DC ±30%

Power Consumption

Max 3.6W (12V DC, IR on)

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

Construction

Casing

Aluminium

Dimensions

176mm×72.4mm×72.5mm (6.93″×2.85″×2.85″)

Net Weight

0.36kg (0.79lb)

Gross Weight

0.46kg (1.01lb)

Pratęsta garantija fiziniams asmenims	+1 metai, +2 metai, +3 metai, +4 metai, +5 metai
Įspėjamieji signalai kameroje (TiOC)	Nėra
Matinimas	12V
Darbinė temperatūra	-30°C ~ +60°C
Šviesos kompensavimai	BLC / HLC / DWDR
Papildomas Audio IN/OUT	Nėra
Integruotas mikrofonas	Yra
Skaitmeninis artinimas	Taip, įrašymo įrenginiu
Optikos tipas	Fiksuotas objektyvas
Matymo kampas horizontaliai	103°
Objektyvas	2.8mm
Papildomi sensoriai	Nėra
Kurpusas	Kupolinis
Full Color klasė	Ne
LED pašvietimas	Nėra
Naktis IR (Infrared) pašvietimas	Iki 50m
Jautrumas šviesai spalvotu vaizdu	0.02Lux
Matrica (sensorius)	1/2.7" CMOS
Kadrų skaičius, FPS	25/30fps@1080P, 25/30/50/60fps@720P
Rezoliucija	1080P (1920×1080)
Raiška Mpix	2 Mpix
Kameros klasė	1 klasė
El.suvartojimas su IR	3.6W
