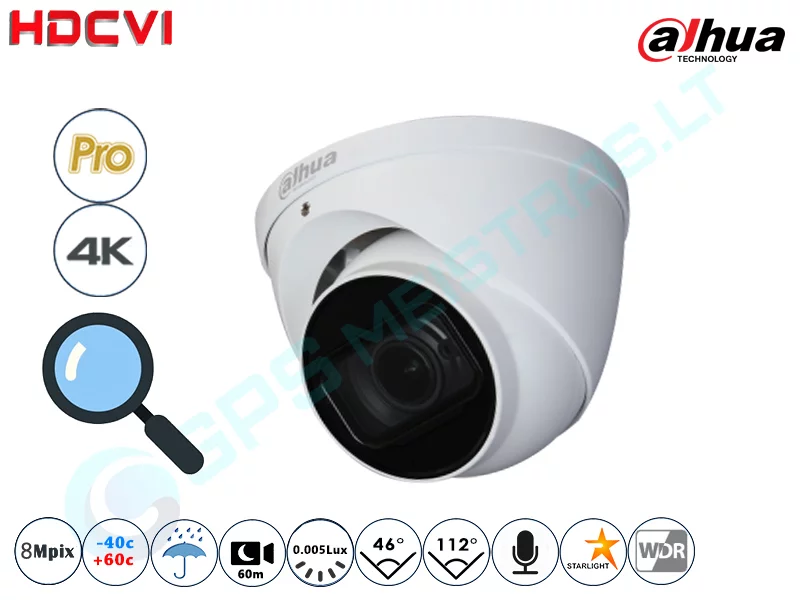

Dahua Kupolinė CVI Kamera 8 Mpix Raiška, Zoom 4x, 2802

Name: Dahua Kupolinė CVI Kamera 8 Mpix Raiška, Zoom 4x, 2802
SKU: Z3BZB 7055465123
Availability: InStock

Original price was: $251.00.Current price is: $97.99.

Pratęsta garantija fiziniams asmenims.

Clear

SKU: Z3BZB 7055465123 Categories: HD-CVI sistema, HD-CVI vaizdo kameros, Security Cameras Tag: Dahua

Shop with confidence, we guarantee quality.
The Quality Choice for Smart Shoppers
Your happiness, our mission.
Shop with ease, buy with confidence.

4K (8MP) HD-CVI Starlight kupolinė vaizdo kamera, 3,7-11 mm motorizuotas objektyvas, objektyvo apžvalgos kampas 112°~46°, IR pašvietimas iki 60 m. HD-CVI kameros pasižymi gera vaizdo kokybe, gera kaina bei lengva instaliacija. Dėl šių priežasčių jos dominuoja CCTV sprendimų pasiūloje kaip idealus kainos ir kokybės santykis, idealiai tinkantis atnaujinti seną analoginę sistemą.

Techninės charakteristikos:

Camera

Image Sensor

1/1.8″ CMOS

Effective Pixels

3840(H)×2160(V), 8MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Minimum Illumination

0.005Lux/F1.5, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 60m (197eet)

IR On/Off Control

Auto / Manual

IR LEDs

Lens

Lens Type

Motorized lens / Fixed iris

Mount Type

Board-in

Focal Length

3.7-11mm

Max Aperture

F1.5

Angle of View

H: 112°~46°

Focus Control

Auto / Manual

Close Focus Distance

200mm

7.87”

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video

Resolution

8MP (3840×2160)

Frame Rate

15fps@4K, 20fps@6MP, 25/30fps@4MP

Video Output

1-channel BNC high definition video output / CVBS video output (DIP switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Wide

Tele

Detect

25px/m (8px/ft)

83m(272ft)

190m(623ft)

Observe

63px/m (19px/ft)

33m(108ft)

76m(249ft)

Recognize

125px/m (38px/ft)

17m(56ft)

38m(125ft)

Identify

250px/m (76px/ft)

8m(26ft)

19m(62ft)

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

1ch in & Built-in Mic

Eelectrical

Power Supply

12V DC ±30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 9.5W (12V DC, IR on)

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Ingress Protection & Vandal Resistance

IP67

Construction

Casing

Aluminium

Dimensions

Φ122mm×107mm (Φ4.8″×4.2″)

Net Weight

0.59kg (1.3lb)

Gross Weight

0.69kg (1.52lb)

Pratęsta garantija fiziniams asmenims.	Gauti pratęstos garantijos pasiūlymą
Įspėjamieji signalai kameroje (TiOC)	Nėra
Matinimas	12V
Darbinė temperatūra	-30°C ~ +60°C
Šviesos kompensavimai	BLC / HLC / WDR
Papildomas Audio IN/OUT	Yra
Integruotas mikrofonas	Yra
Skaitmeninis artinimas	Taip, įrašymo įrenginiu
Optikos tipas	Motorizuotas objektyvas
Matymo kampas horizontaliai	112°~46°
Objektyvas	3.7-11 mm
Papildomi sensoriai	Nėra
Kurpusas	Kupolinis
Full Color klasė	Ne
LED pašvietimas	Nėra
Naktis IR (Infrared) pašvietimas	Iki 60m
Jautrumas šviesai spalvotu vaizdu	0.005Lux
Matrica (sensorius)	1/1.8" CMOS
Kadrų skaičius, FPS	15fps@4K, 20fps@6MP, 25/30fps@4MP
Rezoliucija	4K (3840×2160)
Raiška Mpix	8 Mpix
Kameros klasė	2 klasė
El.suvartojimas su IR	12.5W
